74LV06AT14-13

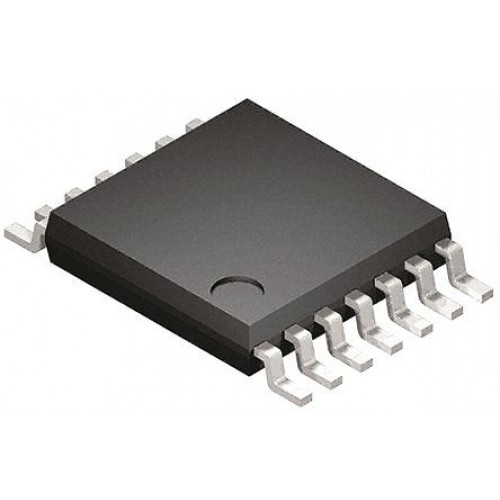

DiodesZetex 74LV06AT14-13, Hex Schmitt Trigger, Open Drain CMOS Inverter, 2 → 5.5 V, 14-Pin TSSOP

Product Details

74LV Family, Diodes Zetex

74LV Family

Specifications
AttributeValue
Logic FunctionInverter
Input TypeSchmitt Trigger
Output TypeOpen Drain
Number of Elements per Chip6
Schmitt Trigger InputYes
Maximum Propagation Delay Time @ Maximum CL8.5 ns @ 50 pF
Maximum Low Level Output Current12mA
Mounting TypeSurface Mount
Package TypeTSSOP
Pin Count14
Logic FamilyLV
Dimensions5.1 x 4.5 x 1.05mm
Height1.05mm
Maximum Operating Supply Voltage5.5 V
Minimum Operating Temperature-40 °C
Width4.5mm
Minimum Operating Supply Voltage2 V
Maximum Operating Temperature+125 °C
Propagation Delay Test Condition50pF
Length5.1mm
Product Details

74LV Family, Diodes Zetex

74LV Family

Specifications
AttributeValue
Logic FunctionInverter
Input TypeSchmitt Trigger
Output TypeOpen Drain
Number of Elements per Chip6
Schmitt Trigger InputYes
Maximum Propagation Delay Time @ Maximum CL8.5 ns @ 50 pF
Maximum Low Level Output Current12mA
Mounting TypeSurface Mount
Package TypeTSSOP
Pin Count14
Logic FamilyLV
Dimensions5.1 x 4.5 x 1.05mm
Height1.05mm
Maximum Operating Supply Voltage5.5 V
Minimum Operating Temperature-40 °C
Width4.5mm
Minimum Operating Supply Voltage2 V
Maximum Operating Temperature+125 °C
Propagation Delay Test Condition50pF
Length5.1mm

Yorum Yap

Not: HTML'e dönüştürülmez!
    Kötü           İyi

74LV06AT14-13

  • Markalar DiodesZetex
  • Ürün Kodu: 74LV06AT14-13
  • Depo Yeri : D104
  • Stok Durumu: 75
  • 17,48TL
  • Dolar Fiyatı: 1$
  • Vergiler Hariç: 14,81TL
Satın alabilmek için asgari adet: 5
