43.41.7.012.2300
Click Image for Gallery
43.41.7.012.2300 43.41.7.012.2300

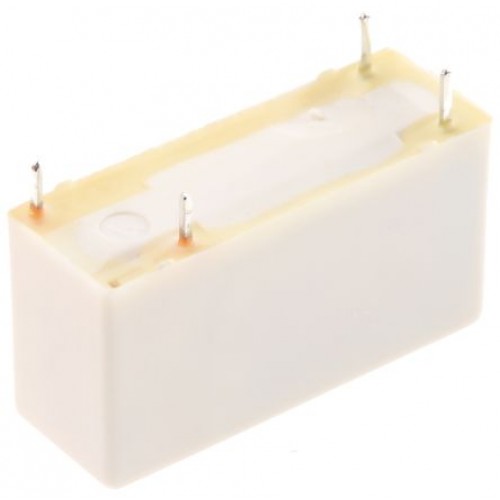

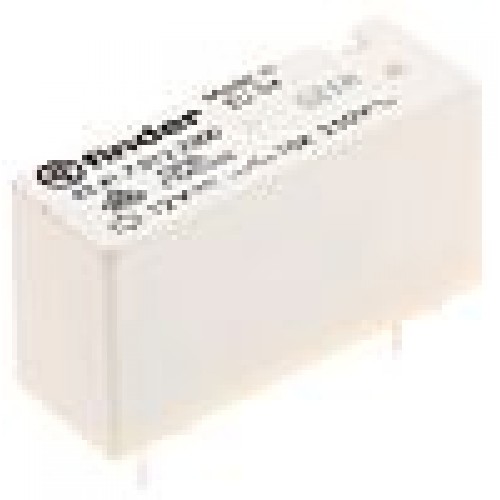

Finder SPNO Non-Latching Relay PCB Mount, 12V dc Coil, 10 A

Product Details

43 Series

Low profile (15.4mm height)
High Isolation coil to contact: 6000Vac
Dimensions: 15.4x10.2x30.2mm

Approvals

UL recognised component for Canada and US, VDE

Specifications
AttributeValue
Coil Voltage12 V dc
Contact ConfigurationSPNO
Mounting TypePCB Mount
Switching Current10 A
Terminal TypeThrough Hole
Series43 Series
Coil Resistance580 Ω
Maximum Switching Voltage AC400V ac
Length30.2mm
Depth10.2mm
Height15.4mm
Dimensions30.2 x 10.2 x 15.4mm
Isolation Coil To Contact6kV
Maximum Operating Temperature+85°C
Operating Temperature Range-40 → +85°C
Maximum Switching Power AC2.5 kVA
Contact MaterialSilver Alloy
Life100000 (Electrical) cycles, 10000000 (Mechanical) cycles
Coil Power250mW
Minimum Operating Temperature-40°C
Number of Poles1
Special FeaturesFlux Resistant
