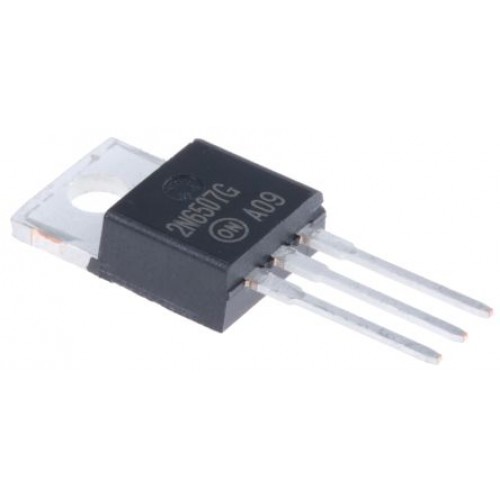

Littelfuse, 2N6507G, Thyristor, 400V 16A, 30mA 3-Pin, TO-220AB
Product Details
Product Details
Phase Control Thyristors, ON Semiconductor
Thyristors - ON Semiconductor
A Thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. They act as bistable switches, conducting when their gate receives a current trigger, and continue to conduct while they are forward biased. Thyristors are synonymous to Silicon-Controlled Rectifier (SCR).
SpecificationsAttribute Value Rated Average On-State Current 16A Thyristor Type SCR Package Type TO-220AB Repetitive Peak Reverse Voltage 400V Surge Current Rating 250A Mounting Type Through Hole Maximum Gate Trigger Current 30mA Maximum Gate Trigger Voltage 1.5V Maximum Holding Current 40mA Pin Count 3 Length 10.28mm Width 4.82mm Height 9.28mm Dimensions 10.28 x 4.82 x 9.28mm Minimum Operating Temperature -40 °C Peak On-State Voltage 1.8V Repetitive Peak Off-State Current 0.01mA Repetitive Peak Forward Blocking Voltage 400V Maximum Operating Temperature +125 °C
A Thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. They act as bistable switches, conducting when their gate receives a current trigger, and continue to conduct while they are forward biased. Thyristors are synonymous to Silicon-Controlled Rectifier (SCR).
| Attribute | Value |
|---|---|
| Rated Average On-State Current | 16A |
| Thyristor Type | SCR |
| Package Type | TO-220AB |
| Repetitive Peak Reverse Voltage | 400V |
| Surge Current Rating | 250A |
| Mounting Type | Through Hole |
| Maximum Gate Trigger Current | 30mA |
| Maximum Gate Trigger Voltage | 1.5V |
| Maximum Holding Current | 40mA |
| Pin Count | 3 |
| Length | 10.28mm |
| Width | 4.82mm |
| Height | 9.28mm |
| Dimensions | 10.28 x 4.82 x 9.28mm |
| Minimum Operating Temperature | -40 °C |
| Peak On-State Voltage | 1.8V |
| Repetitive Peak Off-State Current | 0.01mA |
| Repetitive Peak Forward Blocking Voltage | 400V |
| Maximum Operating Temperature | +125 °C |
