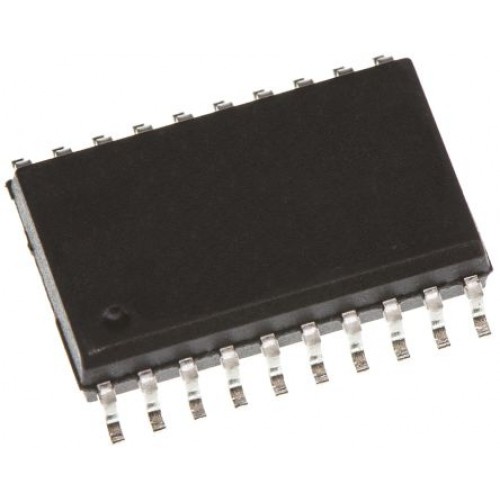

Nexperia 74HCT573D,652 8bit-Bit Latch, Transparent D Type, 3 State, 20-Pin SOIC
Product Details
Product Details
74HCT Family Flip-Flops & Latches, Nexperia
High-Speed CMOS Logic
Operating Voltage 4.5 to 5.5 V
Compatibility: Input TTL, Output CMOS
High-Speed CMOS Logic
Operating Voltage 4.5 to 5.5 V
Compatibility: Input TTL, Output CMOS
74HCT Family
SpecificationsAttribute Value Logic Family HCT Latch Mode Transparent Latching Element D Type Number of Bits 8bit Output Type 3 State Polarity Non-Inverting Mounting Type Surface Mount Package Type SOIC Pin Count 20 Dimensions 13 x 7.6 x 2.45mm Height 2.45mm Length 13mm Width 7.6mm Minimum Operating Supply Voltage 4.5 V Maximum Operating Temperature +125 °C Minimum Operating Temperature -40 °C Maximum Operating Supply Voltage 5.5 V
| Attribute | Value |
|---|---|
| Logic Family | HCT |
| Latch Mode | Transparent |
| Latching Element | D Type |
| Number of Bits | 8bit |
| Output Type | 3 State |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 20 |
| Dimensions | 13 x 7.6 x 2.45mm |
| Height | 2.45mm |
| Length | 13mm |
| Width | 7.6mm |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Supply Voltage | 5.5 V |
