- Protective circuitPolarity reversal protection, Inductive protection, Short circuit protected
Performance data
- Supply voltage UB10 ... 30 V, DC
- Residual ripple0 ... 20 %, From UB
- Open-circuit current0 ... 10 mA
- Temperature drift, max. (in % of Sr)10 %, Over the entire operating temperature range
- Repeatability, max. (in % of Sr)5 %, For UB = 20 … 30 V DC, ambient temperature Ta = 23 °C ± 5 °C
- Switching hysteresis10 %
Outputs
- Number of digital switching outputs1 Piece(s)
Switching outputs
- Voltage typeDC
- Switching current, max.200 mA
- Residual current, max.0.1 mA
- Voltage drop≤ 2 V
Switching output 1
- Switching elementTransistor, PNP
- Switching principleNO (normally open)

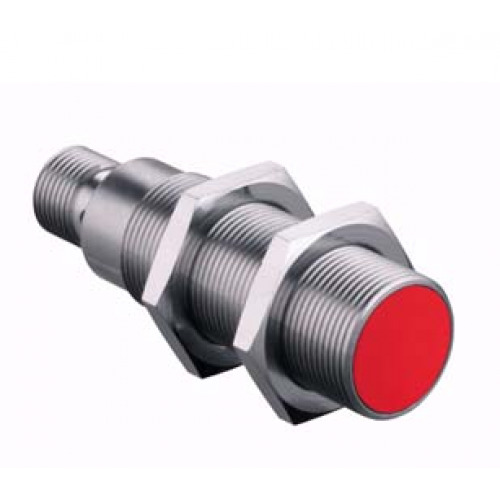

LEUZE IS 218MM-4NO-8E0-S12 - Inductive switch
- Markalar Leuze
- Ürün Kodu: IS 218MM-4NO-8E0-S12
- Depo Yeri : C016
- Stok Durumu: 1
