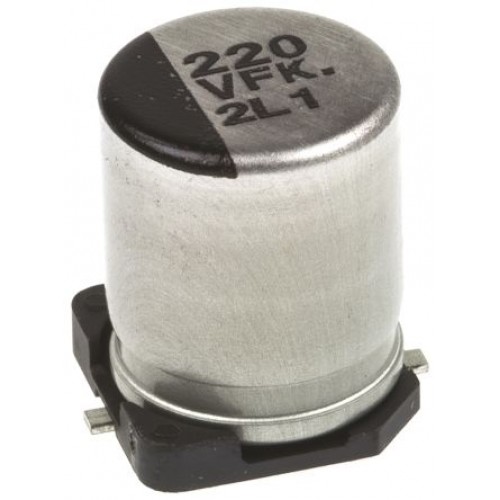

Panasonic 220μF 35V dc Aluminium Electrolytic Capacitor, Surface Mount 8 (Dia.) x 10.2mm +105°C 8mm 3.1mm
Product Details
FK Series
Panasonic FK Series electrolytic capacitors feature endurance of 2000 hours to 5000 hours at +105 °C (dependent on case size). These electrolytic capacitors offer a miniaturised solution. The are 30% to 40% smaller than the FC series, and offer 40% to 60% lower impedance than the FC series.
Panasonic FK Series electrolytic capacitors feature endurance of 2000 hours to 5000 hours at +105 °C (dependent on case size). These electrolytic capacitors offer a miniaturised solution. The are 30% to 40% smaller than the FC series, and offer 40% to 60% lower impedance than the FC series.
Product features:
• Low ESR • High reliability
• High ripple current
• Low impedance
• Long life
• Surface Mount
• Low ESR • High reliability
• High ripple current
• Low impedance
• Long life
• Surface Mount
Applications:
Panasonic FK Series electrolytic capacitors are AEC-Q200 qualified and suitable for use in automotive applications. These Panasonic electrolytic capacitors are recommended for use in industrial infrastructure in motor drivers, inverters, measuring instruments, power supplies, HEMS, BEMS and FEMS. Other suitable applications include ICT applications such as PCs, base stations, data centres, non-contact charge. FK Series Type V aluminium capacitors can be utilised in home appliances including air conditioners, white goods and home information appliances. Other uses include OA equipment, lighting, medical equipment, electric tools and power management, safety, infotainment and comfort accessories in automotive applications.
Capacitance tolerance (%) 20 Temperature range (°C) -55 to +105 Leakage current 0.01CV or 3μA (whichever is greater) Life time at 105°C 2000Hrs (≤10mm dia.), 5000 hrs (≥12.5mm dia.)
Test Conditions Ripple current (max.) quoted at 120 Hz and at max. operating temperature D.F. Max. 120 Hz +20°C, Tan Delta: 120 Hz, I+20°C Impedance @100 kHz Dia. +/- 0.5 mm Length +0.1/-0.2 mm
Dimensions (mm) Case Code A B Max I P W B 4.3 5.5 1.8 1.0 0.65 ±0.1 C 5.3 6.5 2.2 1.5 0.65 ±0.1 D 6.6 5.8 2.6 1.8 0.65 ±0.1 D8 6.6 7.8 2.6 1.8 0.65 ±0.1 E 8.3 9.5 3.4 2.2 0.65 ±0.1 F 8.3 10 3.4 3.1 0.9 ±0.3 G 10.3 13 3.5 4.6 0.9 ±0.3 H13 13.5 15 4.7 4.4 0.9 ±0.3 J16 17 19 5.5 6.7 1.2 ±0.3 K16 19 21 6.7 6.7 1.2 ±0.3
Panasonic FK Series electrolytic capacitors are AEC-Q200 qualified and suitable for use in automotive applications. These Panasonic electrolytic capacitors are recommended for use in industrial infrastructure in motor drivers, inverters, measuring instruments, power supplies, HEMS, BEMS and FEMS. Other suitable applications include ICT applications such as PCs, base stations, data centres, non-contact charge. FK Series Type V aluminium capacitors can be utilised in home appliances including air conditioners, white goods and home information appliances. Other uses include OA equipment, lighting, medical equipment, electric tools and power management, safety, infotainment and comfort accessories in automotive applications.
| Capacitance tolerance (%) | 20 |
| Temperature range (°C) | -55 to +105 |
| Leakage current | 0.01CV or 3μA (whichever is greater) |
| Life time at 105°C | 2000Hrs (≤10mm dia.), 5000 hrs (≥12.5mm dia.) |
| Test Conditions | |
| Ripple current (max.) quoted at 120 Hz and at max. operating temperature | |
| D.F. Max. | 120 Hz +20°C, Tan Delta: 120 Hz, I+20°C |
| Impedance | @100 kHz |
| Dia. | +/- 0.5 mm |
| Length | +0.1/-0.2 mm |
| Dimensions (mm) | |||||
| Case Code | A | B Max | I | P | W |
| B | 4.3 | 5.5 | 1.8 | 1.0 | 0.65 ±0.1 |
| C | 5.3 | 6.5 | 2.2 | 1.5 | 0.65 ±0.1 |
| D | 6.6 | 5.8 | 2.6 | 1.8 | 0.65 ±0.1 |
| D8 | 6.6 | 7.8 | 2.6 | 1.8 | 0.65 ±0.1 |
| E | 8.3 | 9.5 | 3.4 | 2.2 | 0.65 ±0.1 |
| F | 8.3 | 10 | 3.4 | 3.1 | 0.9 ±0.3 |
| G | 10.3 | 13 | 3.5 | 4.6 | 0.9 ±0.3 |
| H13 | 13.5 | 15 | 4.7 | 4.4 | 0.9 ±0.3 |
| J16 | 17 | 19 | 5.5 | 6.7 | 1.2 ±0.3 |
| K16 | 19 | 21 | 6.7 | 6.7 | 1.2 ±0.3 |
Approvals
AEC-Q200 qualified
AEC-Q200 qualified
