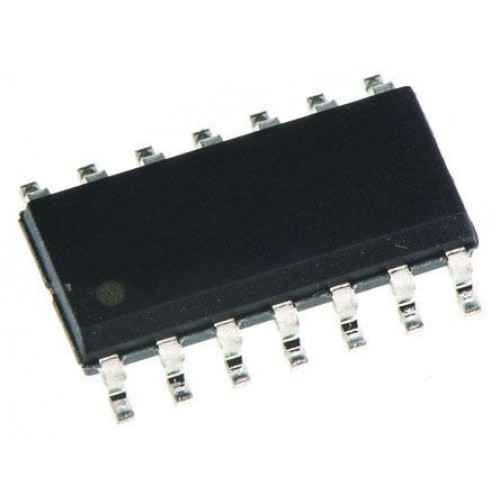

LF347DR Texas Instruments,, Op Amp, 3MHz, 14-Pin SOIC
Product Details
Product Details
JFET Input Op Amp, LF347 - LF444 Series
SpecificationsAttribute Value Mounting Type Surface Mount Package Type SOIC Power Supply Type Dual Number of Channels per Chip 4 Pin Count 14 Typical Gain Bandwidth Product 3MHz Typical Dual Supply Voltage ±12 V, ±15 V, ±5 V, ±9 V Typical Slew Rate 13V/µs Maximum Operating Temperature +70 °C Minimum Operating Temperature 0 °C Width 3.91mm Typical Voltage Gain 100 dB Typical Input Voltage Noise Density 18nV/√Hz Dimensions 8.65 x 3.91 x 1.58mm Length 8.65mm Rail to Rail No Height 1.58mm
| Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Power Supply Type | Dual |
| Number of Channels per Chip | 4 |
| Pin Count | 14 |
| Typical Gain Bandwidth Product | 3MHz |
| Typical Dual Supply Voltage | ±12 V, ±15 V, ±5 V, ±9 V |
| Typical Slew Rate | 13V/µs |
| Maximum Operating Temperature | +70 °C |
| Minimum Operating Temperature | 0 °C |
| Width | 3.91mm |
| Typical Voltage Gain | 100 dB |
| Typical Input Voltage Noise Density | 18nV/√Hz |
| Dimensions | 8.65 x 3.91 x 1.58mm |
| Length | 8.65mm |
| Rail to Rail | No |
| Height | 1.58mm |
